GENERAL DESCRIPTION
Exhaust
1. General Description
S162001
A: COMPONENT S162001A05
1. WITH CATALYTIC CONVERTER
EX(SOHCw/oOBD)-2
|
GENERAL DESCRIPTION
|
|||
|
|
|||
|
Exhaust
|
|||
|
|
|||
|
|
|||
|
1. General Description
|
S162001
|
||
|
|
|||
|
A: COMPONENT S162001A05
1. WITH CATALYTIC CONVERTER
|
|||
|
|
|||
|
|
|||
|
|
|||
|
EX(SOHCw/oOBD)-2
|
|||
|
|
|||
|
|
||||
|
GENERAL DESCRIPTION
|
||||
|
|
||||
|
Exhaust
|
||||
|
|
||||
|

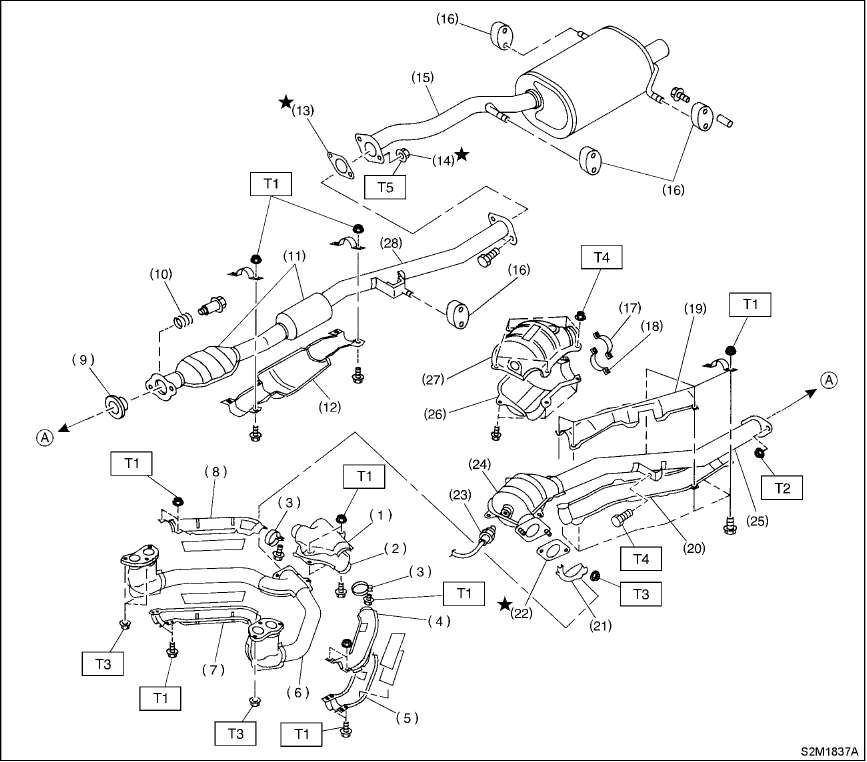

(1) Upper front exhaust pipe cover CTR
(2) Lower front exhaust pipe cover CTR
(3) Clamp
(4) Upper front exhaust pipe cover LH
(5) Lower front exhaust pipe cover LH
(6) Front exhaust pipe
(7) Lower front exhaust pipe cover RH
(8) Upper front exhaust pipe cover RH
(9) Gasket
|
(10) Spring
(11) Chamber
(12) Rear exhaust pipe cover
(13) Gasket
(14) Self-locking nut
(15) Muffler
(16) Cushion rubber
(17) Upper clamp
(18) Lower clamp
(19) Upper center exhaust pipe cover
(20) Lower center exhaust pipe cover
(21) Protector
(22) Gasket
(23) Oxygen sensor
(24) Front catalytic converter
|
(25) Center exhaust pipe
(26) Lower front catalytic converter cover
(27) Upper front catalytic converter cover
(28) Rear exhaust pipe
Tightening torque: N-m (kgf-m, ft-lb) T1: 13 (1.3, 9.4) T2: 18 (1.8, 13.0) T3: 30 (3.1, 22.4) T4: 35 (3.6, 26.0) T5: 48 (4.9, 35.4)
|
||
|
|
||||
|
EX(SOHCw/oOBD)-3
|
||||
|
|
||||
|
|
||||
|
GENERAL DESCRIPTION
|
||||
|
|
||||
|
Exhaust
|
||||
|
|
||||
|
2. WITHOUT CATALYTIC CONVERTER
|
||||
|
|
||||
|
S162001A0503
|
||||
|
|
||||
 |
||||
|
|
||||
|
(1) Upper front exhaust pipe cover CTR
(2) Lower front exhaust pipe cover CTR
(3) Clamp
(4) Upper front exhaust pipe cover LH
(5) Lower front exhaust pipe cover LH
(6) Front exhaust pipe
(7) Lower front exhaust pipe cover RH
(8) Upper front exhaust pipe cover RH
|
(9) Gasket
(10) Spring
(11) Chamber
(12) Rear exhaust pipe cover
(13) Gasket
(14) Self-locking nut
(15) Muffler
(16) Cushion rubber
(17) Upper clamp
(18) Lower clamp
(19) Protector
(20) Gasket
(21) Center exhaust pipe
|
(22) Lower front catalytic converter cover
(23) Upper front catalytic converter cover
(24) Rear exhaust pipe
Tightening torque: N-m (kgf-m, ft-lb) T1: 13 (1.3, 9.4) T2: 18 (1.8, 13.0) T3: 30 (3.1, 22.4) T4: 35 (3.6, 26.0) T5: 48 (4.9, 35.4)
|
||
|
|
||||
|
EX(SOHCw/oOBD)-4
|
||||
|
|
||||
|
|
|||
|
GENERAL DESCRIPTION
Exhaust
|
|||
|
|
|||
|
B: CAUTION
|
S162001A03
|
||
|
|
|||
|
• Wear working clothing, including a cap, protective goggles, and protective shoes during operation.
• Remove contamination including dirt and corrosion before removal, installation or disassembly.
• Keep the disassembled parts in order and protect them from dust or dirt.
• Before removal, installation or disassembly, be sure to clarify the failure. Avoid unnecessary removal, installation, disassembly, and replacement.
• Be careful not to burn your hands, because each part on the vehicle is hot after running.
• Be sure to tighten fasteners including bolts and nuts to the specified torque.
• Place shop jacks or safety stands at the specified points.
• Before disconnecting electrical connectors of sensors or units, be sure to disconnect negative terminal from battery.
|
|||
|
|
|||
|
