RESERVOIR TANK
Cooling
11. Reservoir Tank
S176075
A: REMOVAL
S176075A18
1) Disconnect over flow hose from radiator filler neck position.

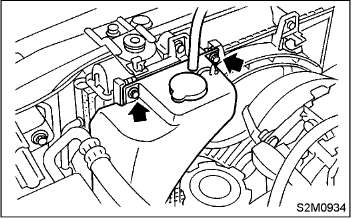

2) Remove bolts which install reservoir tank onto radiator main fan shroud.
3) Remove reservoir tank.
B: INSTALLATION
S176075A11
Install in the reverse order of removal.
Tightening torque:
4.9 Nm (0.50 kgf-m, 3.6 ft-lb)
C: INSPECTION
S176075A10
Make sure the engine coolant level is between full and low.
CO-36
